Same Bolt Pattern, But the Wheels Still Don't Fit — Here's Why

It's one of the most frustrating moments in the wheel world: the bolt pattern matches, the wheels are bolted up — and they still don't fit right. Matching the bolt pattern is necessary, but it's only the first of several checks.

1. Bolt pattern is the gatekeeper, not the green light

A bolt pattern like 5x114.3 means five lugs on a 114.3mm circle. It has to match — but two wheels can share it and still behave completely differently on your car because of everything below.

2. Hub bore (center bore)

The hub bore is the center hole that sits over your car's hub. If it's smaller than your hub, the wheel won't seat at all. If it's larger, the wheel can fit but isn't centered — that's where vibration comes from. The fix for a larger bore is hub-centric rings; a smaller bore is a hard no.

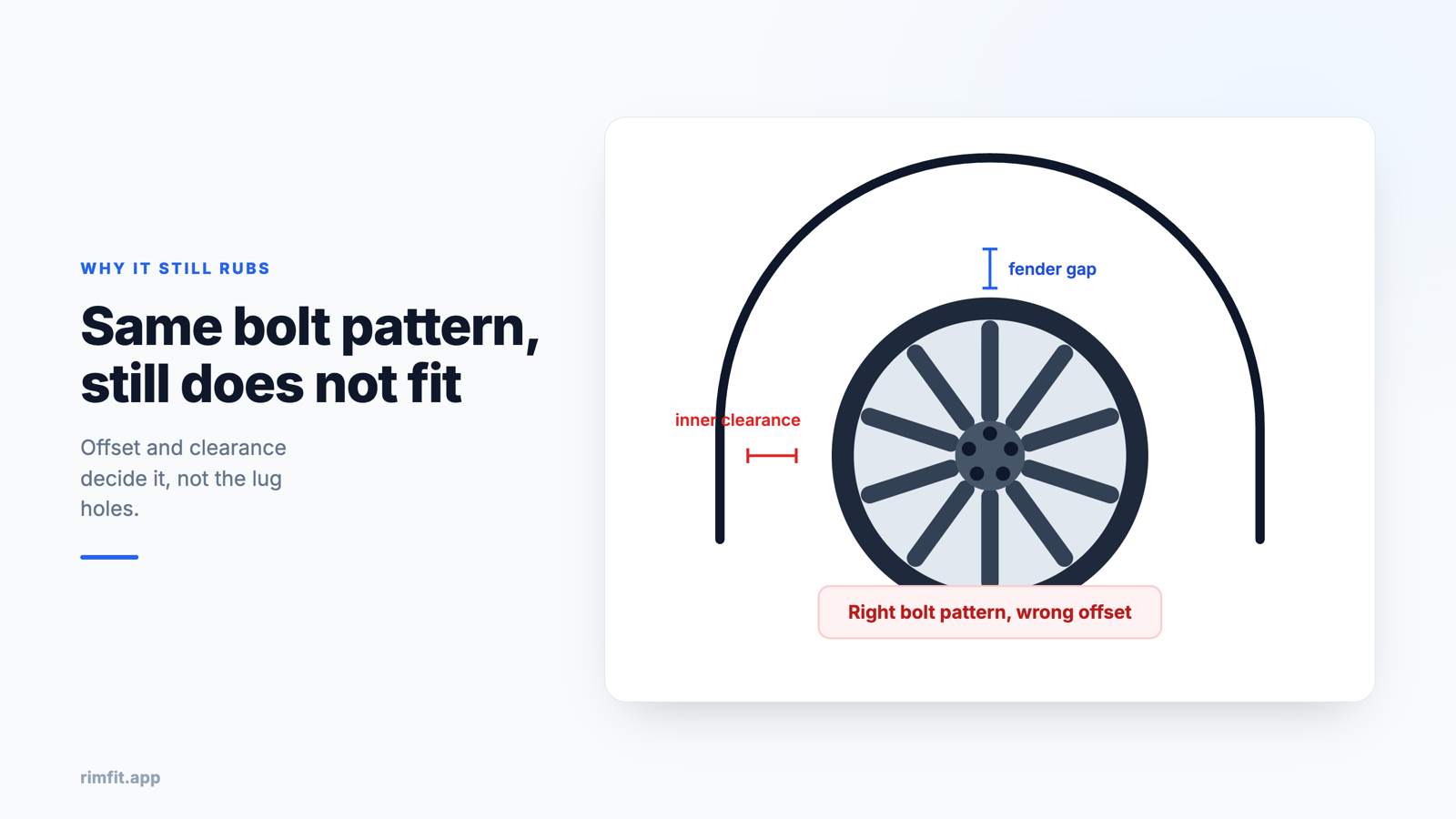

3. Offset and width

Even with the right bolt pattern, the wrong offset or width pushes the wheel too far out (poke and fender rub) or too far in (rubbing on struts and suspension). This is the most common reason "compatible" wheels don't work.

4. Brake caliper clearance

Bigger brakes — especially on performance trims — can foul the inside barrel of a wheel. The wheel bolts on but won't spin freely, or the caliper contacts the spokes.

5. Load rating (trucks and SUVs)

A wheel can fit perfectly and still be unsafe if its load rating is below your vehicle's needs. Always check load rating against GVWR on trucks and tow rigs.

The shop's checklist before you order

• Bolt pattern — exact match
• Hub bore — equal or larger (with rings)
• Offset/backspacing — within the vehicle's range
• Width + tire size — no rub at full lock and compression
• Brake clearance and load rating

A "render" or a catalog photo can't catch any of these — it's just pixels. That's why a real fitment check belongs before anyone commits.
